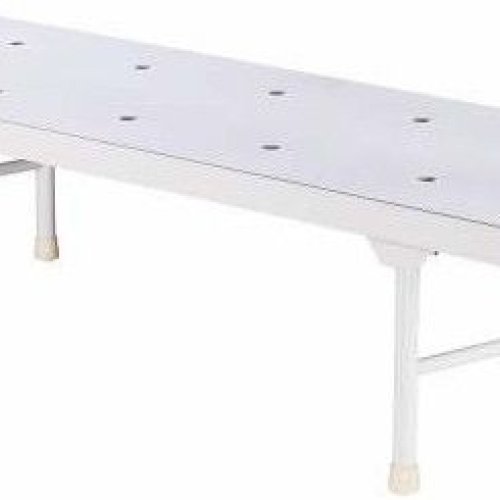

Hospitals Bed

Specifications

• Overall Approximate Dimension in Bed Position: 1830mm (L) x 610mm (W) x 400mm (H).


• Uniformly Perforated Mild Steel CRCA Sheet Top with "H" Legs Fitted with Rubber Shoes.


• Includes a Pair of Mattress Arrestors.


• Pre-Treated & Powder-Coated Finish.


• Supplied in Knocked Down Condition.

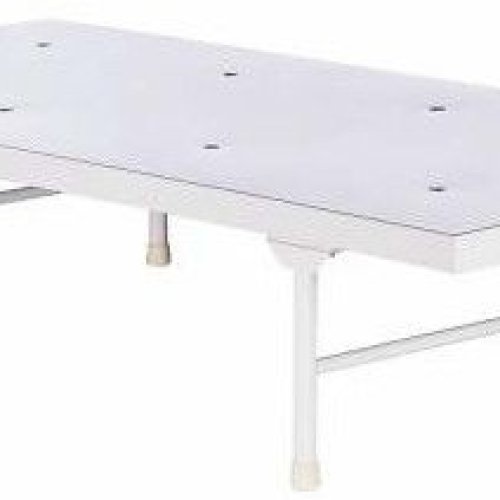

Specifications

• Overall Approximate Dimension in Bed Position: 1830mm (L) x 910mm (W) x 400mm (H).


• Uniformly Perforated Mild Steel CRCA Sheet Top with "H" Legs Fitted with Rubber Shoes.


• Includes a Pair of Mattress Arrestors.


• Pre-Treated & Powder-Coated Finish.


• Supplied in Knocked Down Condition

We are a leading Manufacturer, Supplier, and Retailer offering a versatile Attendant Bed Cum Chair crafted from high-strength metal with a polished finish. This modern rectangular piece is designed for both comfort and functionality. Made in India, this multipurpose furniture seamlessly transitions from a chair to a bed, providing convenience and style in any space. Elevate your living area with this innovative piece that combines durability and contemporary design. Perfect for homes, offices, or commercial spaces, our Attendant Bed Cum Chair is a must-have for those seeking quality and practicality.

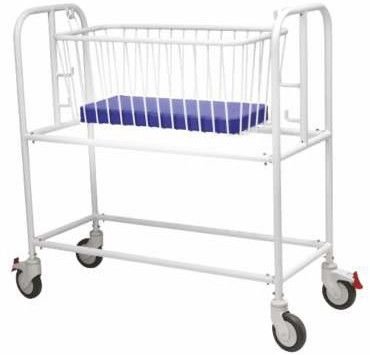

Speicificatins

• Overall Approximate Dimensions: 945mm (L) x 425mm (W) x 1030mm (H).


• Crib Approximate Dimensions: 760mm (L) x 380mm (W) x 300mm (H).


• Strong Construction Made of Mild Steel ERW Round Tubes and Bright Rods.


• Mounted on Four Synthetic Body Castors with a 125mm


• Wheel Diameter: Two with Brake & Two without Brake.


• Pre-Treated & Powder-Coated Finish.



Optional Accessories

• VMT-1005 Rexine Covered Mattress Suitable for Paediatric Bed.


• VMT-1006 Rexine Covered Mattress Suitable for Baby Crib.

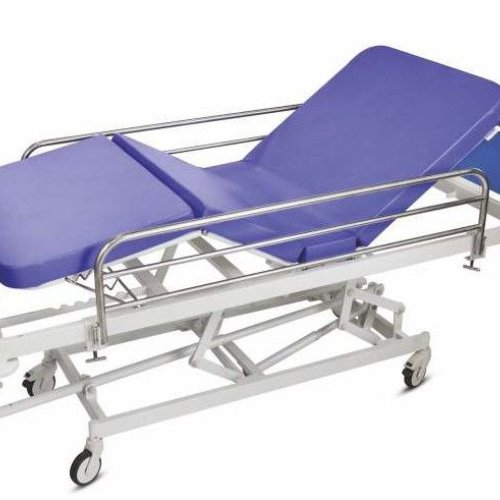

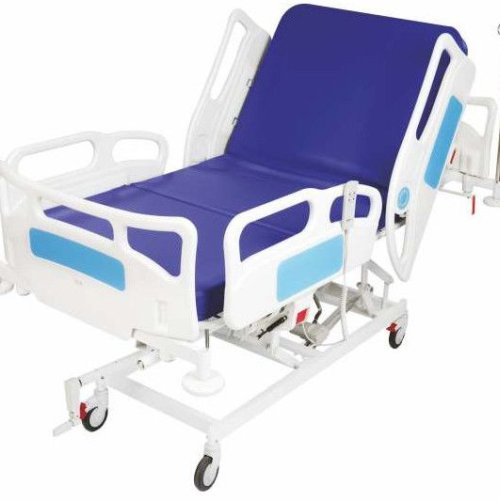

Specifications

• Overall approximate dimensions: 2150mm (L) x 1100mm (W) x 810mm (H).


• Height adjustable from 520mm to 810mm (without mattress).


• Backrest and height adjustable with motor.


• Four-section perforated mild steel CRCA sheet top.


• Framework made from mild steel ERW rectangular tubes.


• Mounted on four synthetic body castors (125mm wheel diameter) with two featuring brakes and two without.


• Polymer head and footboard with a set of four polymer railings.


• Provision at the four corners of the bed for telescopic IV poles and corner bumpers.


• Pre-treated and powder-coated finish.


• Supplied in a knocked-down condition.



Optional Accessories:

• VAC-1009 Heavy-duty telescopic IV pole with SS framework.


• VAC-1007 Urine bag holder (MS EPC).


• VAC-1008 Chart holder (MS EPC).


• VMT-1004 PU foam mattress, four-section

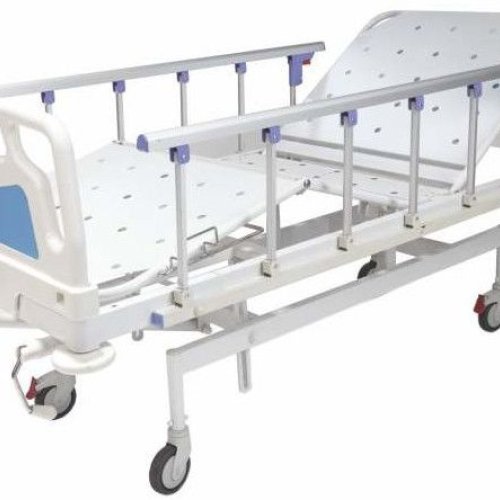

Specifications

• Overall approximate dimensions: 2080mm (L) x 910mm (W).


• Backrest, upper leg, and Trendelenburg / Reverse Trendelenburg


• adjustments with a crank mechanism and separate mechanisms at the legend featuring stainless steel handles.


• Four-section perforated mild steel CRCA sheet top.


• Framework made from mild steel ERW rectangular tubes.


• Mounted on four synthetic body castors (125mm wheel diameter), two with brakes and two without.


• Includes removable polymer head and footboard.


• Provision at the four corners of the bed for telescopic IV poles and corner bumpers.


• Pre-treated and powder-coated finish.


• Supplied in a knocked-down condition.



Optional Accessories:

• VAC-1001 Telescopic IV pole with SS framework.


• VAC-1003 Collapsible side railings with SS tube and MS brackets (pair).


• VAC-1004 Swing-away type SS tube railings (pair).


• VAC-1005 Swing-away type MS tube railings (pair).


• VAC-1007 Urine bag holder (MS EPC).


• VAC-1008 Chart holder (MS EPC).


• VMT-1004 PU foam mattress, four-section.

Specifications

• Overall approximate dimensions: 2120mm (L) x 910mm (W) x 600mm (H).


• Bed frame approximate dimensions: 2080mm (L) x 910mm (W).


• Backrest and upper leg section adjusted with a crank mechanism,


• featuring separate screws at the leg end with a stainless steel handle.


• Calf section adjusted with a ratchet mechanism.


• Uniformly perforated four-section mild steel CRCA sheet top.


• Framework made from mild steel ERW rectangular tubes.


• Four locations on the bed frame for telescopic IV poles.


• "H" type legs fitted with rubber shoes.


• Pre-treated and powder-coated finish.


• Supplied in a knocked-down condition



Optional Accessories

• VAC-1001 Telescopic IV pole with SS framework.


• VAC-1003 Collapsible side railings with SS tube and MS brackets (pair).


• VAC-1004 Swing-away type SS tube railings (pair).


• VAC-1005 Swing-away type MS tube railings (pair).


• VAC-1007 Urine bag holder (MS EPC).


• VAC-1008 Chart holder (MS EPC).


• VAC-1010 Castor wheels with synthetic body, 125mm


• diameter: two with brakes and two without.


• VMT-1004 PU foam mattress, four-section

Specifications

• Overall Approx. Dimensions: 2150mm (L) x 1100mm (W) x 810mm (H).


• Height adjustable from 520mm to 810mm (without mattress).


• Backrest, upper leg, height, and Trendelenburg/reverse Trendelenburg adjustments are motorized.


• Four-section perforated mild steel CRCA sheet top.


• Framework made from mild steel ERW rectangular tubes.


• Mounted on four synthetic body castors (125mm wheel diameter) with two featuring brakes and two without.


• Includes polymer head and footboard with a set of four polymer railings.


• Provision at the four corners of the bed for telescopic IV poles and corner bumpers.


• Pre-treated and powder-coated finish.


• Supplied in a knocked-down condition.



Optional Accessories:

• VAC-1009 Heavy-Duty Telescopic IV Pole with SS framework.


• VAC-1007 Urine bag holder (MS EPC).


• VAC-1008 Chart holder (MS EPC).


• VMT-1004 PU foam mattress, four-section.

Specifications

• Overall approximate dimensions: 2240mm (L) x 1000mm (W) x 710mm (H).


• Height adjustable using a crank mechanism from 490mm to 710mm (without mattress).


• Backrest, upper leg, height, and Trendelenburg/reverse Trendelenburg adjustments using a crank mechanism with separate mechanisms at the leg end, featuring stainless steel handles.


• Four-section perforated mild steel CRCA sheet top.


• Framework made from mild steel ERW rectangular tubes.


• Mounted on four synthetic body castors (125mm wheel diameter) with two featuring brakes and two without. Includes polymer head and footboard.


• Provision at the four corners of the bed for telescopic IV poles and corner bumpers.


• Pre-treated and powder-coated finish.


• Supplied in a knocked-down condition.


• Pre-treated and powder-coated finish.


• Supplied in a knocked-down condition



Optional Accessories:

• VAC-1001 Telescopic IV pole with SS framework.


• VAC-1003 Collapsible side railings with SS tube and MS brackets (pair).


• VAC-1004 Swing-away type SS tube railings (pair).


• VAC-1005 Swing-away type MS tube railings (pair).


• VAC-1007 Urine bag holder (MS EPC).


• VAC-1008 Chart holder (MS EPC).


• VMT-1004 PU foam mattress, four-section

Specifications

• Overall approximate dimensions: 2240mm (L) x 1000mm (W) x 710mm (H).


• Height adjustable using a crank mechanism from 490mm to 710mm (without mattress).


• Backrest, upper leg, height, and Trendelenburg/reverse Trendelenburg adjustments using a crank mechanism with separate mechanisms at the leg end, featuring stainless steel handles.


• Four-section perforated mild steel CRCA sheet top.


• Framework made from mild steel ERW rectangular tubes.


• Mounted on four synthetic body castors (125mm wheel diameter) with two featuring brakes and two without. Includes polymer head and footboard.


• Provision at the four corners of the bed for telescopic IV poles and corner bumpers.


• Pre-treated and powder-coated finish.


• Supplied in a knocked-down condition.


• Pre-treated and powder-coated finish.


• Supplied in a knocked-down condition



Optional Accessories:

• VAC-1001 Telescopic IV pole with SS framework.


• VAC-1003 Collapsible side railings with SS tube and MS brackets (pair).


• VAC-1004 Swing-away type SS tube railings (pair).


• VAC-1005 Swing-away type MS tube railings (pair).


• VAC-1007 Urine bag holder (MS EPC).


• VAC-1008 Chart holder (MS EPC).


• VMT-1004 PU foam mattress, four-section

Specifications

• Overall Approximate Dimension: 1120mm (L) x 450mm (W) x 970mm (H).


• Top Approximate Dimension: 760mm (L) x 450mm (W).


• Strong mild steel round tubular framework.


• Mounted on four synthetic body castors with a 50mm wheel diameter, without brakes.


• Fitted with a plain laminated board top.


• Pre-treated & Powder-coated Finish.


• Supplied in knocked down condition.

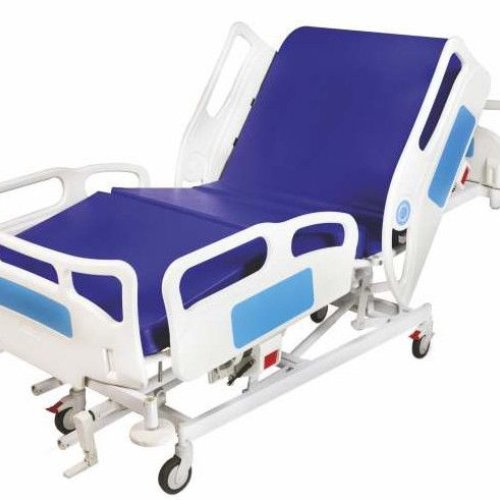

We offer a high-quality Mechanical ICU Bed manufactured in India, designed with a polished finish and a sleek rectangular shape in a classic white color. Ideal for hospital use, this bed is easy to place and ensures patient comfort and safety. As a leading Manufacturer, Supplier, and Retailer, we take pride in providing top-notch medical equipment that meets the highest standards of quality and functionality.

Specifications

• Overall approximate dimensions: 2140mm (L) x 955mm (W) x 600mm (H).


• Bed frame approximate dimensions: 1980mm (L) x 910mm (W).


• Backrest adjusted with a crank mechanism, with separate screws provided


• at the leg end with a stainless steel handle.


• Uniformly perforated four-section mild steel CRCA sheet top.


• Framework made from mild steel ERW rectangular tubes.


• Four locations on the bed frame for telescopic IV poles.


• "H" type legs fitted with rubber shoes.


• Pre-treated and powder-coated finish.


• Supplied in a knocked-down condition.



Optional Accessories

• VAC-1001 Telescopic IV pole with SS framework.


• VAC-1003 Collapsible side railings with SS tube and MS brackets (pair).


• VAC-1004 Swing-away type SS tube railings (pair).


• VAC-1005 Swing-away type MS tube railings (pair).


• VAC-1007 Urine bag holder (MS EPC).


• VAC-1008 Chart holder (MS EPC).


• VAC-1010 Castor wheels with synthetic body, 125mm


• diameter: two with brakes and two without.


• VMT-1002 PU foam mattress, two-section

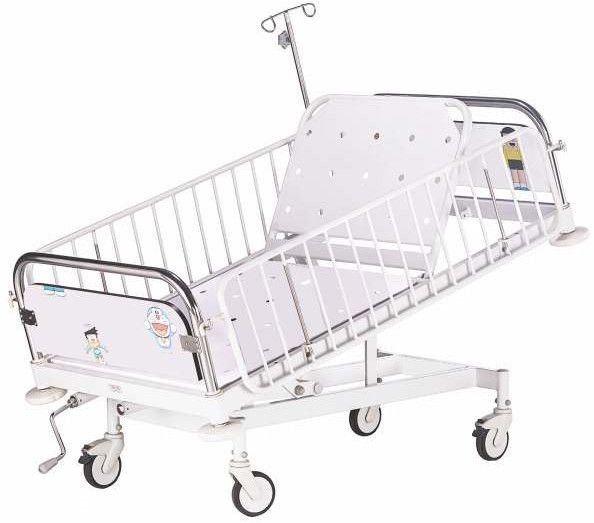

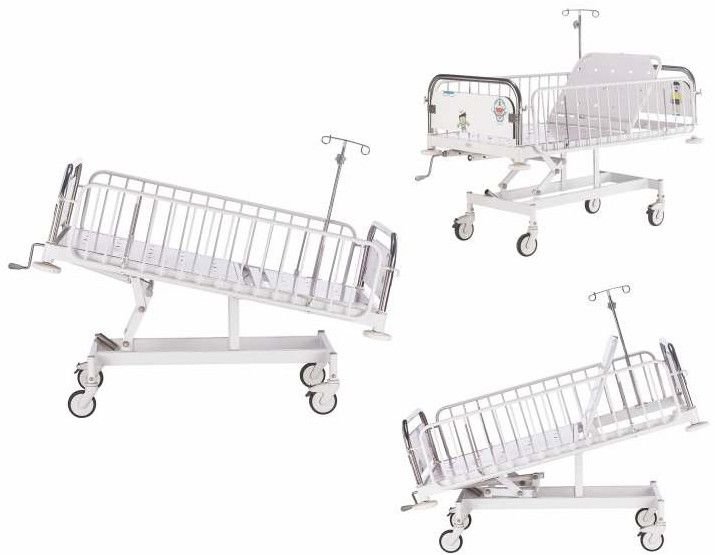

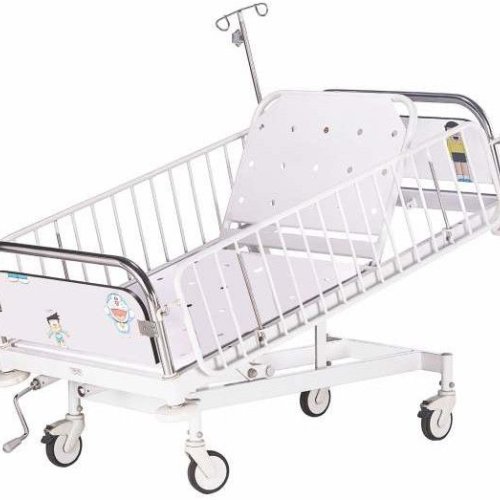

Specifications

• Overall approximate dimensions: 1605mm (L) x 920mm (W).


• Height Adjustment: Min. 480mm - Max. 720mm.


• Backrest Angle: 0-70°.


• Trendelenburg/Reverse Trendelenburg: 0-10° / 0-10°.


• Safe Working Load: 110kg.


• Patient Load Capacity: 80kg

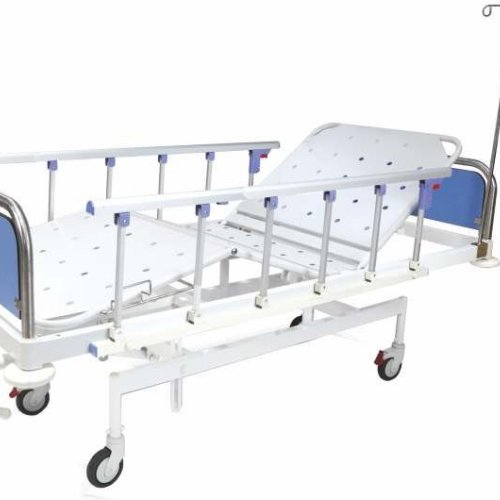

Specifications

• MS tubular frame work with Drop type Side Railing (MS Tube and SS Tube).


• Backrest and Trendelenburg/Reverse Trendelenburg Position on Crank


• Mechanism with Separate Screw provided at Leg end with Stainless Steel Removable Handle.


• Uniformly Perforated Mild Steel CRCA Sheet Top.


• Four-side Provision for Telescopic I.V. Pole.


• 125mm Diameter Castor: two with brake & two without brake.


• Four corner Safety Rubber Buffer.


• Removable stainless steel head and footboards with laminated panels


• provide added durability and easy maintenance.


• All MS parts are Pre-treated and epoxy powder coated.

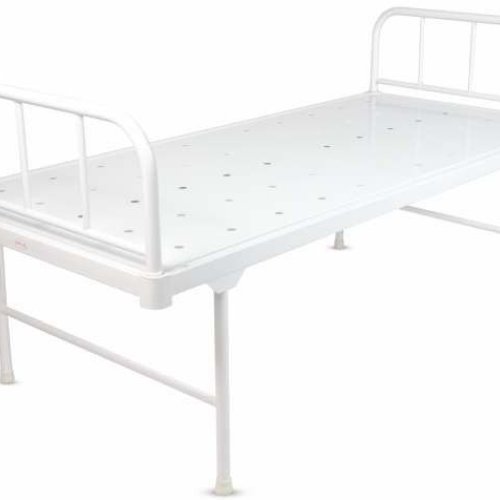

Specifications

• Overall Approximate Dimension: 1980mm (L) x 910mm (W) x 600mm (H).


• Bed Frame Approximate Dimension: 1980mm (L) x 910mm (W).


• Uniformly Perforated Mild Steel CRCA Sheet top Framework Made From


• Mild Steel ERW Rectangular Tubes.


• MS Head and Foot Board provided with "H" Legs Fitted with Rubber Shoes.


• Provision at Four Corners of the Bed for Telescopic IV Pole.


• Pre-Treated and Powder Coated Finish. Supplied in Knocked Down Condition.

We offer a modern and polished Plain Over Bed Table designed for hospital use. This rectangular table comes with four wheels for easy mobility and adjustable height. Ideal for manufacturers, suppliers, and retailers looking for a sleek and functional addition to their inventory.

Specifications

• Overall approximate dimensions: 2140mm (L) x 955mm (W) x 600mm (H).


• Bed frame approximate dimensions: 1980mm (L) x 910mm (W).


• Backrest adjusted with a crank mechanism, with separate screws provided


• at the leg end with a stainless steel handle.


• Uniformly perforated four-section mild steel CRCA sheet top.


• Framework made from mild steel ERW rectangular tubes.


• Four locations on the bed frame for telescopic IV poles.


• "H" type legs fitted with rubber shoes.


• Pre-treated and powder-coated finish.


• Supplied in a knocked-down condition.



Optional Accessories

• VAC-1001 Telescopic IV pole with SS framework.


• VAC-1003 Collapsible side railings with SS tube and MS brackets (pair).


• VAC-1004 Swing-away type SS tube railings (pair).


• VAC-1005 Swing-away type MS tube railings (pair).


• VAC-1007 Urine bag holder (MS EPC).


• VAC-1008 Chart holder (MS EPC).


• VAC-1010 Castor wheels with synthetic body, 125mm


• diameter: two with brakes and two without.


• VMT-1002 PU foam mattress, two-section

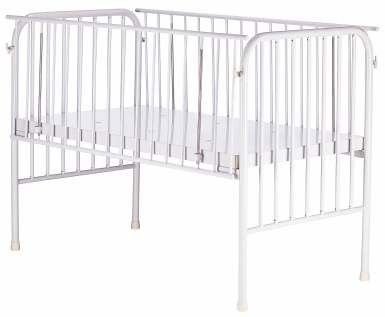

Specifications

• Overall Approximate Dimensions: 1480mm (L) x 840mm (W) x 600mm (H).


• Bed Frame Approximate Dimensions: 1370mm (L) x 760mm (W).


• Uniformly Perforated Mild Steel CRCA Sheet Top, with both


• Head Bow and Leg Bow of Equal Height of Approximately 1060mm.


• A Pair of Full-Length Drop Type Side Railings. Legs Fitted with PVC Shoes.


• Pre-Treated & Powder Coated Finish.

Specifications

• Overall approximate dimensions: 2140mm (L) x 955mm (W) x 600mm (H).


• Bed frame approximate dimensions: 1980mm (L) x 910mm (W).


• Backrest adjusted with a crank mechanism, with separate screws provided


• at the leg end with a stainless steel handle.


• Uniformly perforated four-section mild steel CRCA sheet top.


• Framework made from mild steel ERW rectangular tubes.


• Four locations on the bed frame for telescopic IV poles.


• "H" type legs fitted with rubber shoes.


• Pre-treated and powder-coated finish.


• Supplied in a knocked-down condition.



Optional Accessories

• VAC-1001 Telescopic IV pole with SS framework.


• VAC-1003 Collapsible side railings with SS tube and MS brackets (pair).


• VAC-1004 Swing-away type SS tube railings (pair).


• VAC-1005 Swing-away type MS tube railings (pair).


• VAC-1007 Urine bag holder (MS EPC).


• VAC-1008 Chart holder (MS EPC).


• VAC-1010 Castor wheels with synthetic body, 125mm


• diameter: two with brakes and two without.


• VMT-1002 PU foam mattress, two-section

Speicification

• Overall approximate dimensions: 2240mm (L) x 955mm (W) x 600mm (H).


• Bed frame approximate dimensions: 2080mm (L) x 910mm (W).


• Backrest and upper leg section adjusted with a crank mechanism,


• featuring separate screws at the leg end with a stainless steel handle. Calf section adjusted with a ratchet mechanism.


• Uniformly perforated four-section mild steel CRCA sheet top.


• Framework made from mild steel ERW rectangular tubes.


• Four locations on the bed frame for telescopic IV poles.


• "H" type legs fitted with rubber shoes.


• Pre-treated and powder-coated finish.


• Supplied in a knocked-down condition.



Optional Accessories

• VAC-1001 Telescopic IV pole with SS framework.


• VAC-1003 Collapsible side railings with SS tube and MS brackets (pair).


• VAC-1004 Swing-away type SS tube railings (pair).


• VAC-1005 Swing-away type MS tube railings (pair).


• VAC-1007 Urine bag holder (MS EPC).


• VAC-1008 Chart holder (MS EPC).


• VAC-1010 Castor wheels with synthetic body, 125mm


• diameter: two with brakes and two without.


• VMT-1004 PU foam mattress, four-section.

Specifications

• Overall approximate dimensions: 2080mm (L) x 910mm (W).


• Backrest, upper leg, and Trendelenburg/reverse Trendelenburg


• adjustments with a crank mechanism and separate mechanisms at the leg end featuring stainless steel handles.


• Four-section perforated mild steel CRCA sheet top.


• Framework made from mild steel ERW rectangular tubes.


• Mounted on four synthetic body castors (125mm wheel diameter), two with brakes and two without.


• Removable SS head and footboard with laminated top.


• Provision at the four corners of the bed for telescopic IV poles and corner bumpers.


• Pre-treated and powder-coated finish.


• Supplied in a knocked-down condition.



Optional Accessories:

• VAC-1001 Telescopic IV pole with SS framework.


• VAC-1003 Collapsible side railings with SS tube and MS brackets (pair).


• VAC-1004 Swing-away type SS tube railings (pair).


• VAC-1005 Swing-away type MS tube railings (pair).


• VAC-1007 Urine bag holder (MS EPC).


• VAC-1008 Chart holder (MS EPC).


• VMT-1004 PU foam mattress, four-section.

Specificatios

• Overall approximate dimensions: 2140mm (L) x 1000mm (W).


• Backrest and Trendelenburg/reverse Trendelenburg adjustments with crank mechanism and separate mechanisms at the leg end featuring stainless steel handles.


• Two-section perforated mild steel CRCA sheet top.


• Framework made from mild steel ERW rectangular tubes.


• Mounted on four synthetic body castors (125mm wheel diameter), two with brakes and two without.


• Removable polymer head and footboard.


• Provision at the four corners of the bed for telescopic IV poles and corner bumpers.


• Pre-treated and powder-coated finish.


• Supplied in a knocked-down condition.



Optional Accessories

• VAC-1001 Telescopic IV pole with SS framework.


• VAC-1003 Collapsible side railings with SS tube and MS brackets (pair).


• VAC-1004 Swing-away type SS tube railings (pair).


• VAC-1005 Swing-away type MS tube railings (pair).


• VAC-1007 Urine bag holder (MS EPC).


• VAC-1008 Chart holder (MS EPC).


• VMT-1004 PU foam mattress, four-section.
